Proril - Stainless Steel Dewatering Pumps

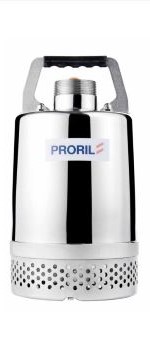

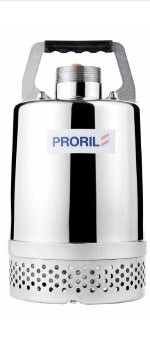

PRORIL X-Smart 400 and X-Smart 750

X-SMART Series, all components in contact with liquid of the stainless steel dewatering pumps are made of 304 stainless steel. These pumps are designed for handling clean water or screened wastewater. With the use of the food-graded lubricant, they are also applicable to the aquaculture industry.

Stainless Steel Dewatering Pumps

X-SMART series pumps are designed for handling clean water or screened wastewater. The high quality and innovative design has proven to be highly reliable and durable for trouble-free performance.

60Hz Pump Specs

Pump Data X-Smart 400 X-Smart 750
Pump Discharge Size 2" 2"
Shaft Speed (rpm) 3,450 3,450
Rated Output (HP) 0.5 1
Rated Head (ft.) 23 33
Rated Flow (gpm) 37 53
Maximum Head (ft.) 33 49
Maximum Flow (gpm) 63 85
Solid Handling (in.) 0.2 0.3
Diameter (in.) 7.1 7.1
Height (in.) 13.1 14.2
Weight (lbs.) 29 31

Motor Data X-Smart 400 X-Smart 750
HP 0.5 1
Voltage (1-phase) 115 115
Shaft Speed (rpm) 3,450 3,450
Insulation Class F F

Construction Materials X-Smart 400 X-Smart 750
Pump Casing Stainless-Steel Stainless-Steel
Impeller Stainless-Steel Stainless-Steel
Motor Frame Stainless-Steel Stainless-Steel
Motor Shaft Stainless-Steel Stainless-Steel
Strainer Stainless-Steel Stainless-Steel

Spec Sheet X-Smart 400 X-Smart 750
