Hydraulic Submersible - 8" Heidra 200

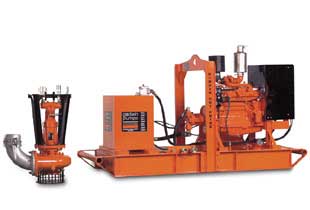

The Heidra 200 hydraulic submersible pump is a self-contained, diesel powered 8" (200mm) pump available for heavy duty municipal and industrial dewatering and solids handling pumping applications. The Heidra 200 offers flow rates up to 3,100 gpm (196 l/sec.) with up to 180' (54.9 meters) of total dynamic head and solids handling capability of 3-1/8" (79mm) in diameter. The unit consists of a sturdy cast iron submersible pumpend and hydraulic power pack mounted on a rugged steel skid. A variable displacement hydraulic piston pump on the power pack delivers hydraulic fluid to a fixed displacement piston motor that drives the pumpend's shaft, bearings, and cast steel impeller. Simple engine throttle adjustments allow changes to pump flow and head performance.

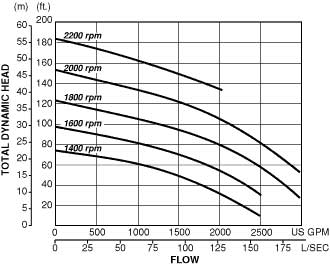

Performance Chart

Download Spec Sheet
