Top Discharge Hydraulic Submersible - 4" Heidra 100TD

The Godwin 4" (100mm) Heidra 100TD hydraulic submersible pump is a compact self-contained pumping unit featuring a diesel driven power pack and 4" (100mm) submersible hydraulic pump. With variable speed diesel engine power, the Heidra 100TD can meet a variety of flow and head requirements up to 800 gpm (50 l/sec.) and 130' (39.6 meters) of total dynamic head with a simple throttle adjustment. Top discharge design enables the pump to be lowered into a 19.5" (495mm) opening. Add the ability to pass solids to 2" (50mm) diameters, dry running capabilities, a cast chromium steel impeller, and you have a rugged dewatering / solids-handling, hydraulic submersible pump ready to go anywhere.

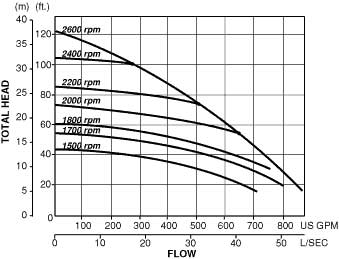

Performance Chart

Download Spec Sheet
