500

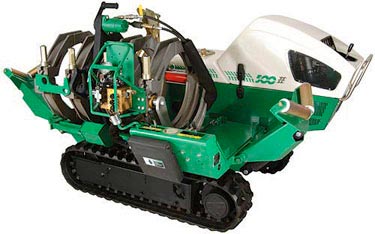

TracStar^® 500 Pictured

McElroy's TracStar^® 500 will butt fuse pipe sizes from 6” IPS to 20” OD (180mm to 500mm). It was the first fusion machine in the world to be mounted on a track system, making it mobile in almost any terrain. Considered the flagship of McElroy machines, its success spawned the entire TracStar line of fusion equipment.

The TracStar 500 incorporates the interchangeable 500 carriage with McElroy's patented Centerline Guidance System. Two fixed and movable clamping jaws result in precision pipe alignment for higher quality fusion joints.

TracStar^® 500

• Powered by a 23–HP 3–cylinder liquid–cooled diesel engine
• Carriage can be easily removed for in–ditch use
• On–board generator for powering heater and other devices
• Hydraulic pipe lift aids in loading and unloading pipe
• Fits in a standard long–box truck bed for easy transport
• DataLogger^® compatible
• Dual Speed Tracks
• Hydraulic Clamping available

	Download TracStar® 500 Series 3 Spec Sheet
	Download TracStar® 500 Series 3 Automatic Spec Sheet
