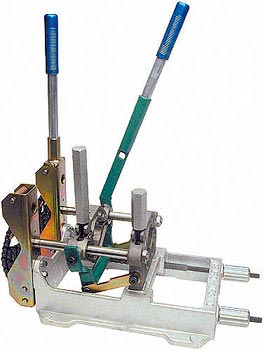

2CU

The 2CU Machine will butt fuse ½” CTS to 2” IPS (16mm to 60mm) pipe, tees, ells and other fittings

This combination unit (CU) incorporates McElroy's patented combination sidewall feature. Sidewall clamps with chain vise allow the unit to be attached on the centerline of a pipe main for sidewall fusion of ½” to 2” service saddles, round base branch saddles and small tapping tees.

The 2CU is equipped with chain length that will clamp up to 8” IPS pipe. Additional chain lengths are available for larger main sizes.

2CU

Download Spec Sheet
