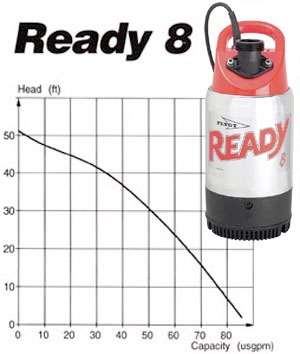

Performance curve - Ready 8
 |
|
| Rated output | 1.1 Hp |
 |
|
| Phase | 115-230V, 1 phase |
|
|
| Speed of rotation | 3400 rpm |
|
|
| Weight | 33 lb (15 kg) |
|
|
| Height | 17" (430 mm) |
|
|
| Width | 7 5/16" (185 mm) |
|
|
| Discharge connection | 2"-11 1/2 NPSM |
|
|
| Material | |
|
|
| Outer casing | Stainless steel, 304 grade |
|
|
| Stator housing | Stainless steel, 304 grade |
|
|
| Shaft | Stainless steel, 304 grade |
|
|
| Impeller | Polyurethane |
|
|
| Diffuser | Polyurethane |
|
|
| Pump top | Polymer |
|
|
|
Built-in controls Thermal overload protectors. Level control Available with automatic level control. Cable 50 Ft Motor Class F, maximum temperature 155° (310°F). Dry running capability. Mechanical face seals The mechanical face seals are separated for double safety. |
|
|
| Inner seal | carbon/ceramic |
|
|
| Outer seal | SiC/SiC |
|
|
| pH of the pumped liquid 3-8pH |
